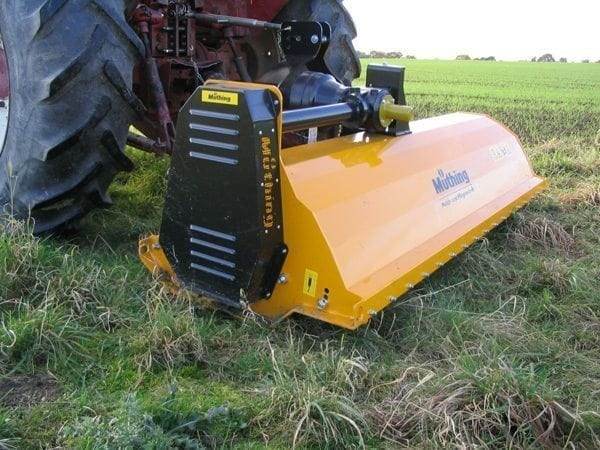

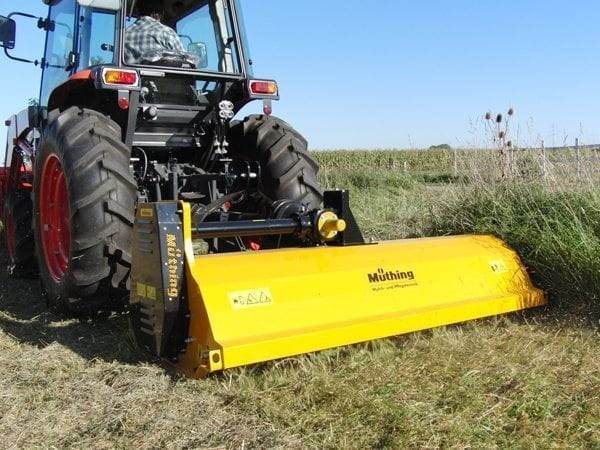

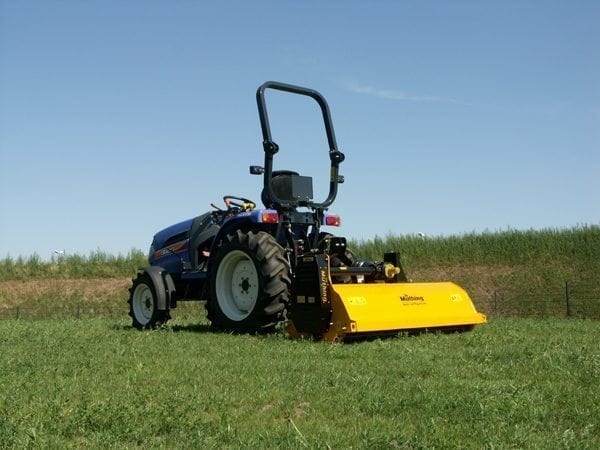

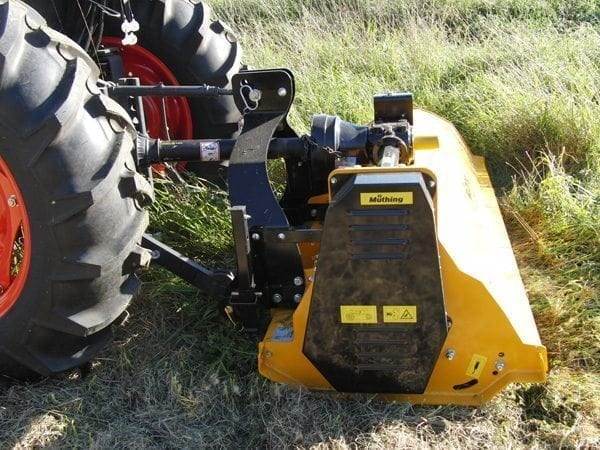

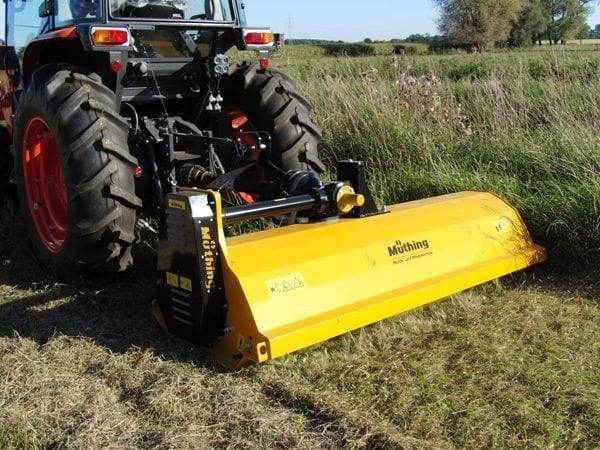

MU-ECOTOP Flail Mower
It’s all about the basics
- Classic entry-level machine for smaller-scale areas
- From pasture care to mulching work around the farmstead – everything is possible
- Müthing mulching quality with the equipment you need at an entry-level price
- Rear mounting
- Simple handling: Both mounting and working
- Suitable for diving powers from 30 to 75hp*
- Working width: 1.60m / 1.80m / 2.00m
Description
Standard Equipment:
- Manufactured from High-Quality QSt/E Steel
- Headstock Cat. I + II for Rear mounting
- Mountable in two positions variable by 30cm (Offset)
- Gearbox with integrated over run clutch and through drive 540 r.p.m. or 1000 r.p.m.
- Belt protection with tension measuring slot
- Stand
- High tempered “M” Hammer flails
- Smooth running Spiral rotor with specially formed lugs
- Patented removable shredding bar – System: “Shark Fin”
- Roller to carry the flail, adjustable for different heights
- High tempered spring steel one-way protection flaps in front of the mower
- Optimised distance between the outer rotor circle and the roller guarantees perfect contour following and even quality of cut
- P.T.O. shaft and Guarding to ISO Standards
- Independently tested and certified for “Thrown Objects”, Click here for more information
Options:
- Warning signs and lights (dealer fit)
Technical Data
| MODEL | WORKING WIDTH (cm) | OVERALL WIDTH (cm) |
MAX. TRACTOR HP (540 r.p.m / 1000 r.p.m) | WEIGHT (kg) | NO. OF FLAILS |
| MU-ECOTOP 160 | 160 | 177 | 60 / 75 | 352 | 14 |
| MU-ECOTOP 180 | 180 | 197 | 60 / 75 | 372 | 16 |
| MU-ECOTOP 200 | 200 | 217 | 60 / 75 | 390 | 16 |
* Some model series can be converted from 540 to 1000 rpm, which makes higher driving powers permissible. In these cases, you will see two horsepower values (as listed in the chart above).
