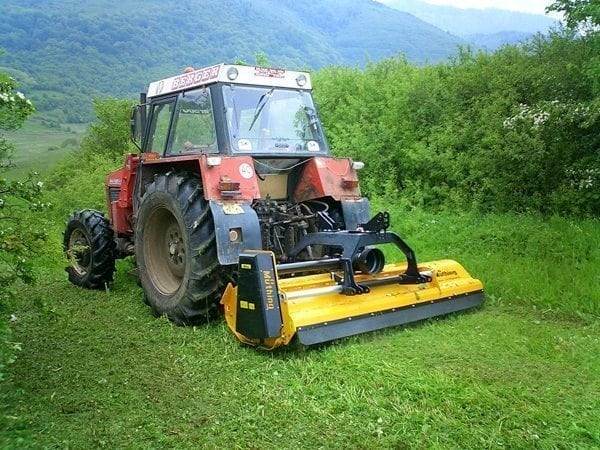

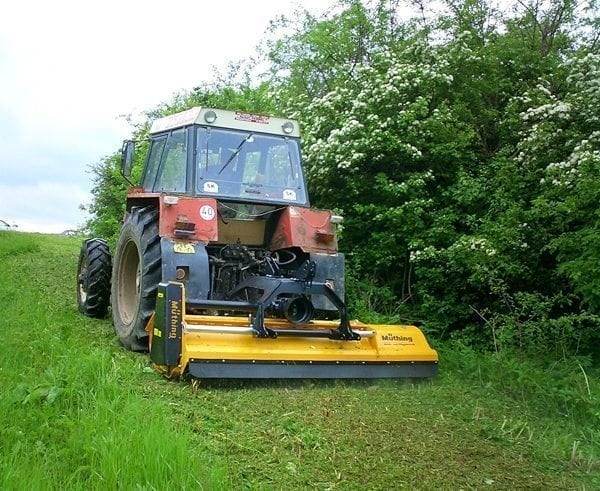

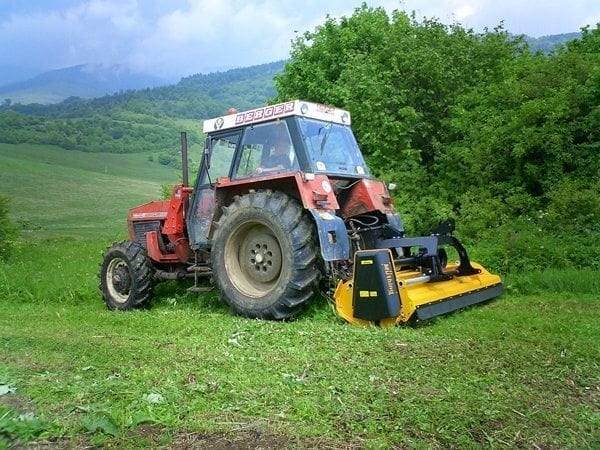

MU-L VARIO Flail Mowers

UNIVERSAL MULCHER FOR THE SMALL TO MEDIUM-SIZED OPERATION

• Fully equipped for arable farming and grassland
• MU-Vario® System as standard
• Use the MU-L Vario as it suits you, with front or rear mounting on your tractor (optional)
• Customised working width for your application
• Crop discharge in front of the large support roller is also possible optionally
• Long service life thanks to the internal Starinth® rear roller bearing system

Description

Standard Equipment:

  • Manufactured from High-Quality QSt/E Steel with multi-position Headstock Cat. I + II for Front or Rear mounting with mechanical side shift; MUL 180 – 280: 56 cm (as shown)
  • Gearbox with integrated over run clutch and through drive for 540 / 1000 r.p.m.
  • Belt protection with tension measuring slot
  • High tempered “M” Hammer flails to ensure a clean cut and maximum shredding using less power
  • Spiral Rotor with specially formed flail lugs to protect against damage from obstacles and internal bearings protecting against dirt, wear and tear
  • Roller with internal bearings System “Starinth” and well-rounded edges to preserve the soil and turf and to carry the flail, adjustable to different heights; Wearing skids, High tempered spring steel one-way protection flaps in the front
  • Optimised distance between the outer rotor circle and the roller guarantees perfect contour following  and even quality of cut
  • Purposely designed hood in conjunction with high rotor and cutting speeds and removable shredding bar spreads the shredded material evenly behind the roller giving an excellent Mulching
  • Patented removable shredding bar System: “Shark Fin”.
  • P.T.O. shaft and Guarding to ISO Standards

Options:

  • Shock absorbing linkage springs (for Front Mounting recommended)
  • Hydraulic Weight Transfer MU-SOFA®, for Front mounting recommended
  • Hydraulic side shift (1 double-acting spool valve required) MUL 180 – 280: 56 cm lifting range
  • Height adjustable rubber wheels, 360º swivel with adjustable width for rear mounting (replacing the roller or in addition to the roller)
  • Warning signs and lights (dealer fit)
  • Hood Wear plate (Delivery time to be asked for)
  • Additional Carbide wearing skids, removable (Delivery time to be asked for)
  • Second patented removable shredding bar – System: “Shark Fin”
  • Alternative flails and rotor systems (3 back to back Flails, M Shackle Flails)
  • Working hours meter with electronic sensor

Technical Data

MODEL WORKING WIDTH (cm) OVERALL WIDTH (cm) MAX. TRACTOR HP
(540 r.p.m. / 1000 r.p.m)
WEIGHT
(kg)
NO. OF FLAILS
MU-L 180 180 197 100 / 120 640 16
MU-L 200 200 217 100 / 120 670 16
MU-L 220 220 237 100 / 120 740 18
MU-L 250 250 267 100 / 120 790 22
MU-L 280 280 297 – / 120 885 24

Click here for further information.
