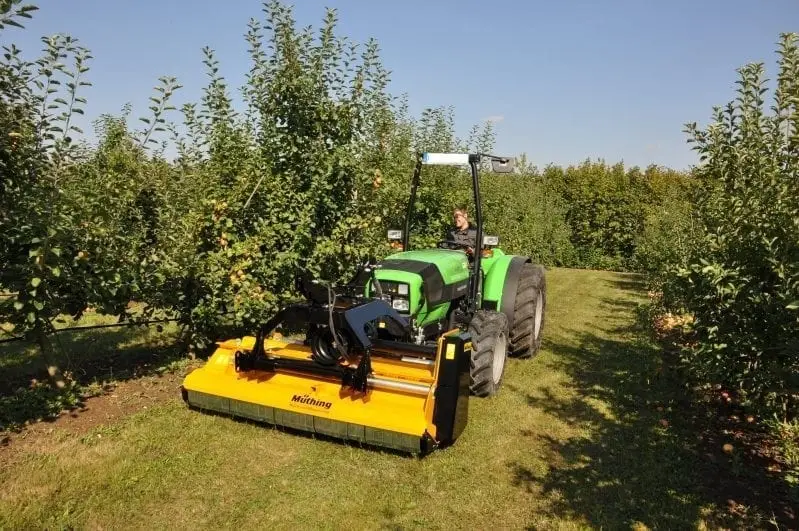

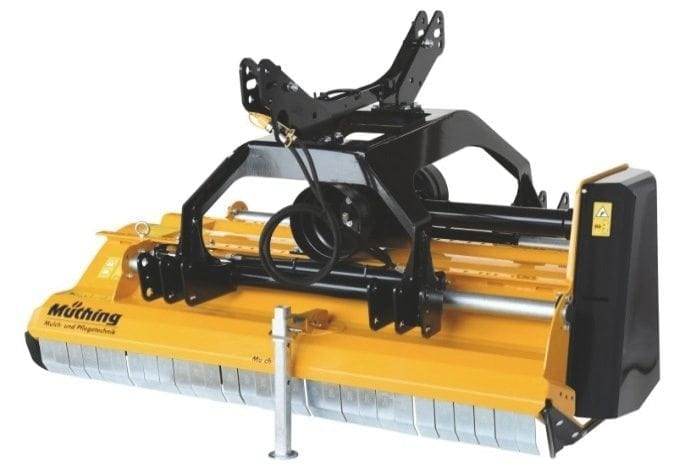

MU-O VARIO Flail Mower
Standard Equipment
- Manufactured from High-Quality QSt/E Steel with multi-position headstock Cat. I + II for front and rear mounting
- Rear mounting with mechanical side shift; MU-O 180 – 250 Vario: 56 cm
- Gearbox with integrated over run clutch and through drive for 540 / 1,000 r.p.m.
- Belt protection with tension measuring slot
- High tempered “M” Hammer flails to ensure a clean cut and maximum shredding using less power
- Spiral Rotor with specially formed flail lugs to protect against damage from obstacles, bearings protected against dirt, wear and tear
- Patented removable shredding bar – System: “Shark fin”
- Support roller to carry the flail, adjustable for different heights of the mulching system, with Roller Bearing Starinth
- High tempered spring steel one-way protection flaps in front of the mower hood
- Optimised distance between the outer rotor circle and the support roller guarantees perfect contour following and even quality of cut
- Spreads the shredded material evenly behind the support roller
- Excellent Mulching Quality
- Side skids
- PTO shaft with hardened inner pipe and cap bottom lubrication
Description
Options
- Front and rear headstock Cat. I + II (shiftable or fixed mounted), support leg, central mounting
- Central mounting for MU-O 180 – 250 Vario
- Hydraulic side shift (1 double-acting spool valve required) MU-O 180 – 250 Vario: 56 cm lifting range
- Front shock-absorbing spring assembly required
- Alternatively, we recommend Hydraulic Weight Transfer MU-SOFA®
- Alternative flails and rotor systems (triple Y-blades, “M”-Shackle flails)
- Adjustable cutting bar (Vario)
- Hood Wear plate (factory mounted)
- Carbide wearing skids, removable, incl. baffle plate
- Second patented removable shredding bar – System: “Shark fin”
- Operating hours counter with sensor, time recording via angular momentum
- Lighting equipment support bolted onto the 3-point trestle (factory mounted)
Technical Data
| MODEL | WORKING WIDTH (cm) | OVERALL WIDTH (cm) | MAX TRACTOR HP (540 r.p.m. / 1,000 r.p.m) | WEIGHT | NO. OF FLAILS |
| MU-O 180 Vario | 180 cm | 197 cm | 100 / 130 HP | 660 kg | 16 |
| MU-O 200 Vario | 200 cm | 217 cm | 100 / 130 HP | 690 kg | 16 |
| MU-O 220 Vario | 220 cm | 237 cm | 100 / 130 HP | 760 kg | 18 |
| MU-O 250 Vario | 250 cm | 267 cm | 100 / 130 HP | 810 kg | 22 |
